Build Your Insert RFQ Preview
Choose an insert family, select the closest standard style, enter key dimensions, then download an RFQ preview drawing or send it to ATOS for review.
- Hex, round, square, and custom insert requests
- Drawing-based review for U.S. industrial buyers
- Fast preview workflow before formal quotation
Start with the closest insert family, then refine style and dimensions in the steps below.

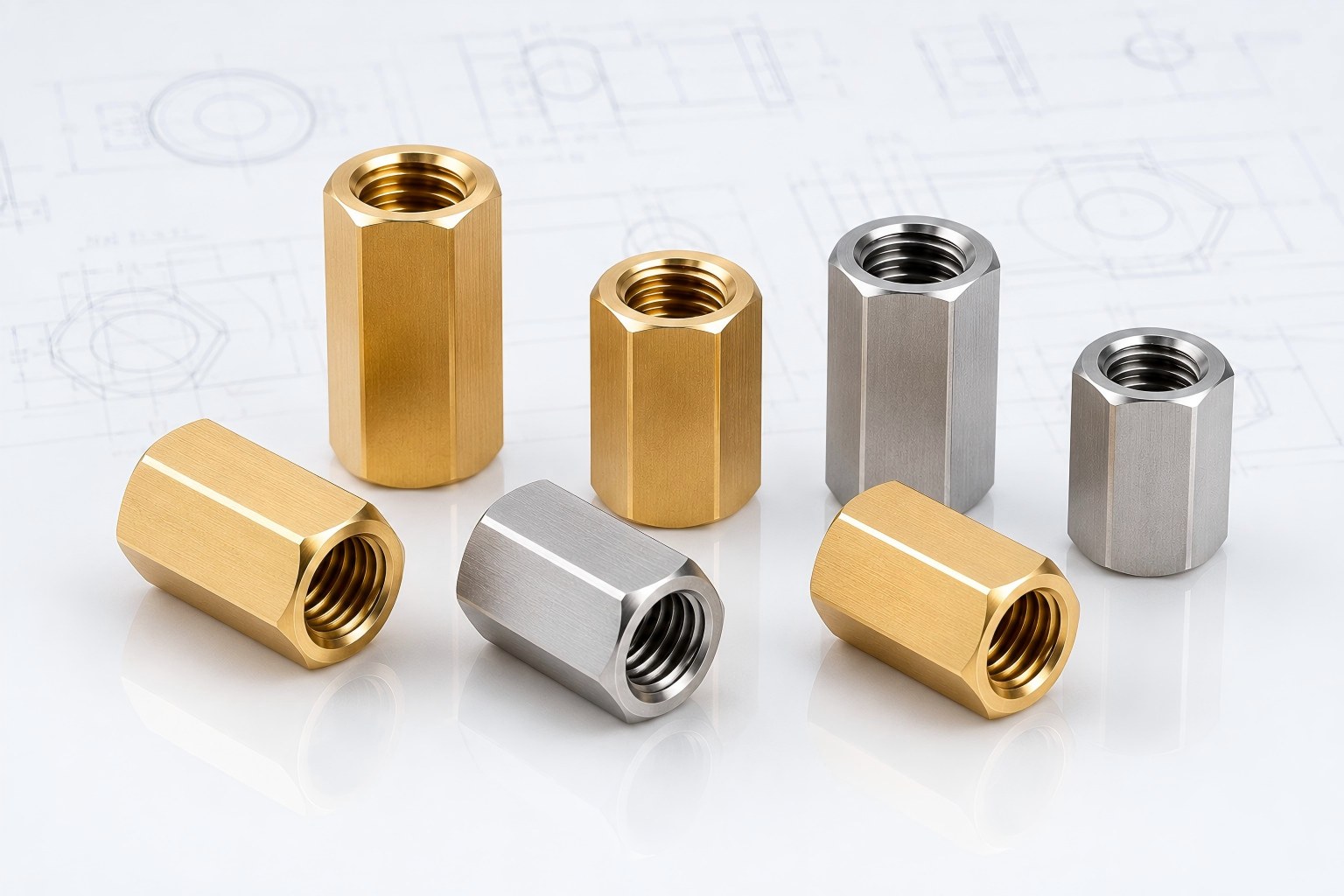

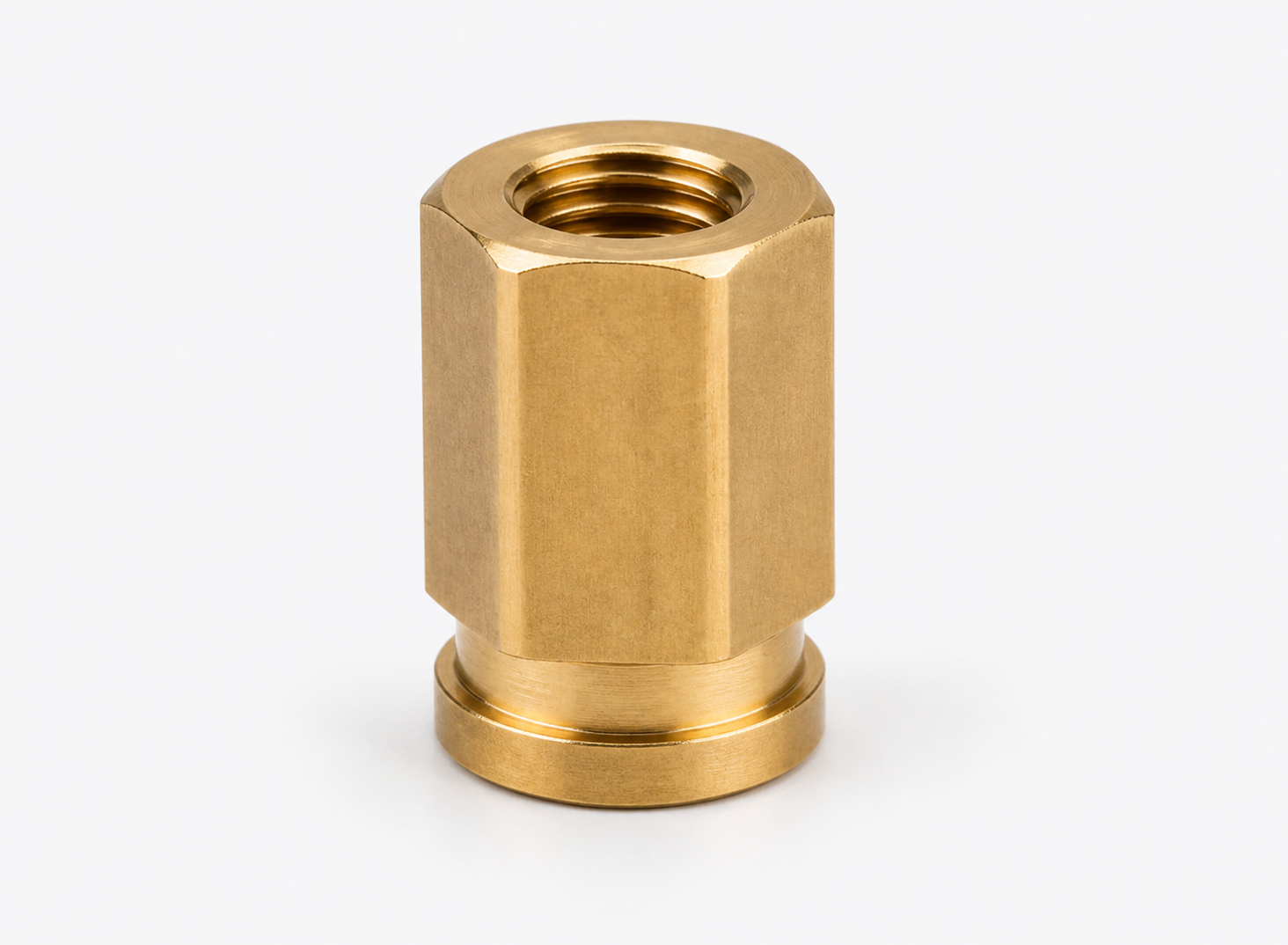

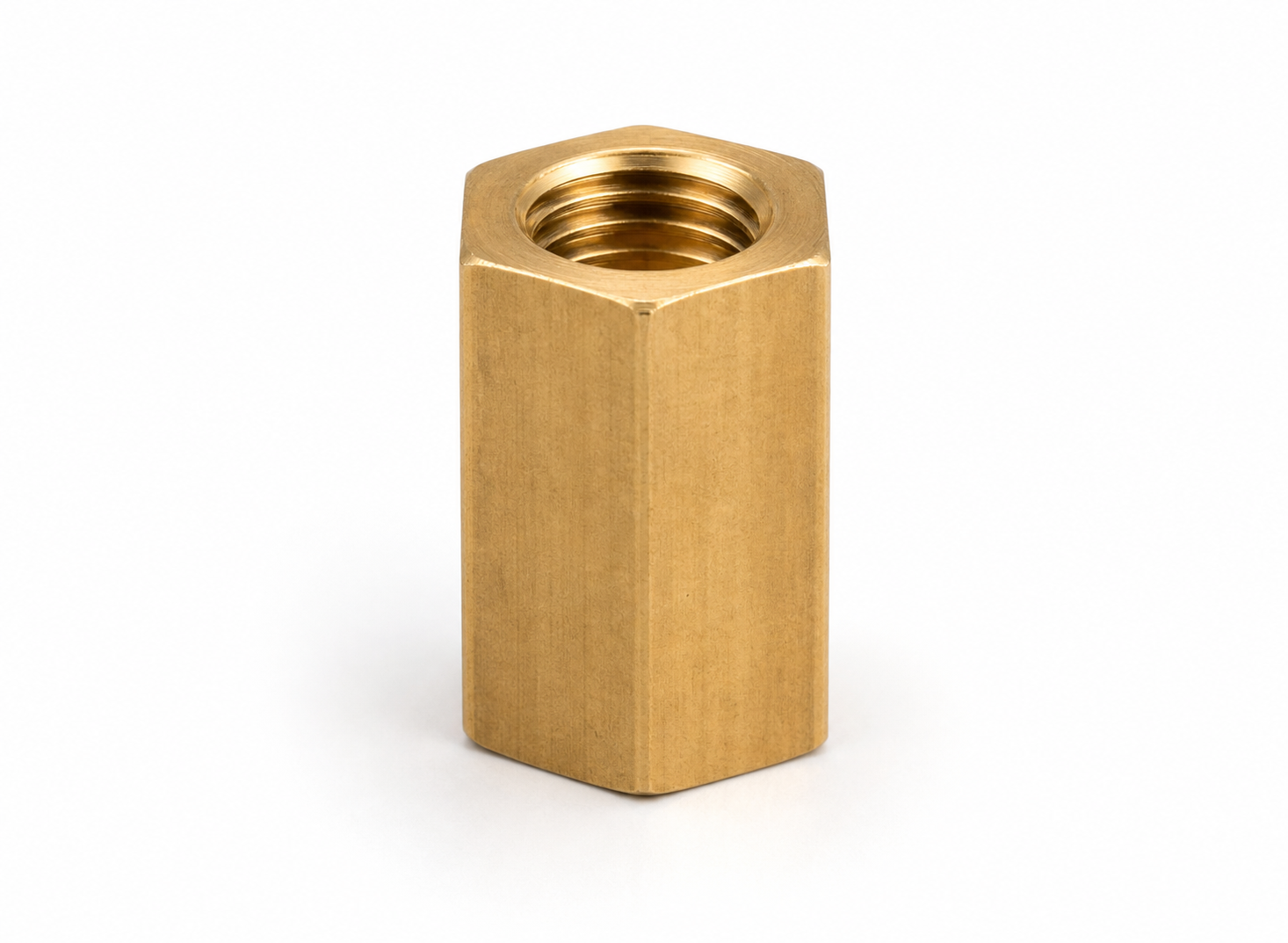

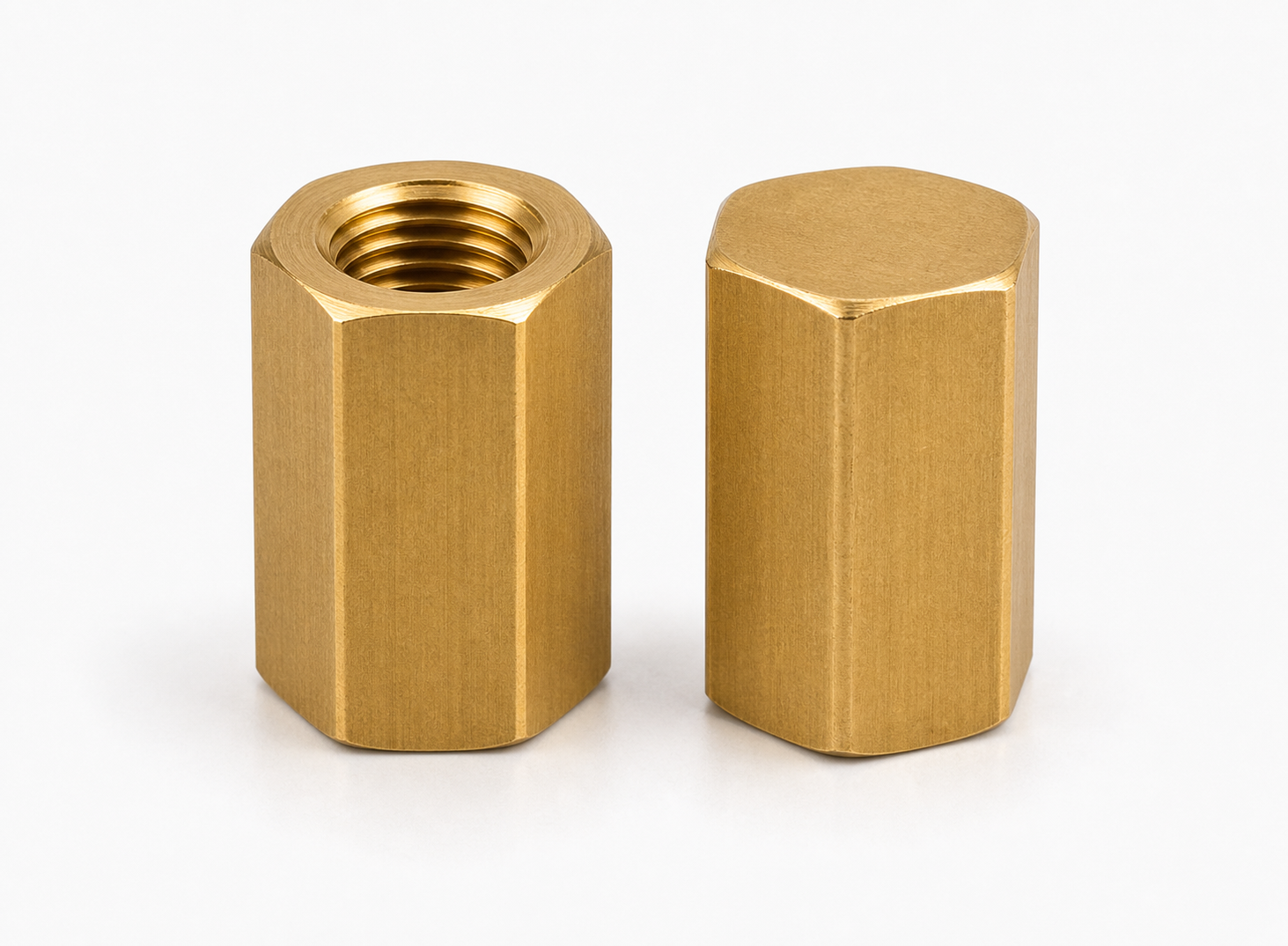

Hex straight, shoulder and blind insert styles.

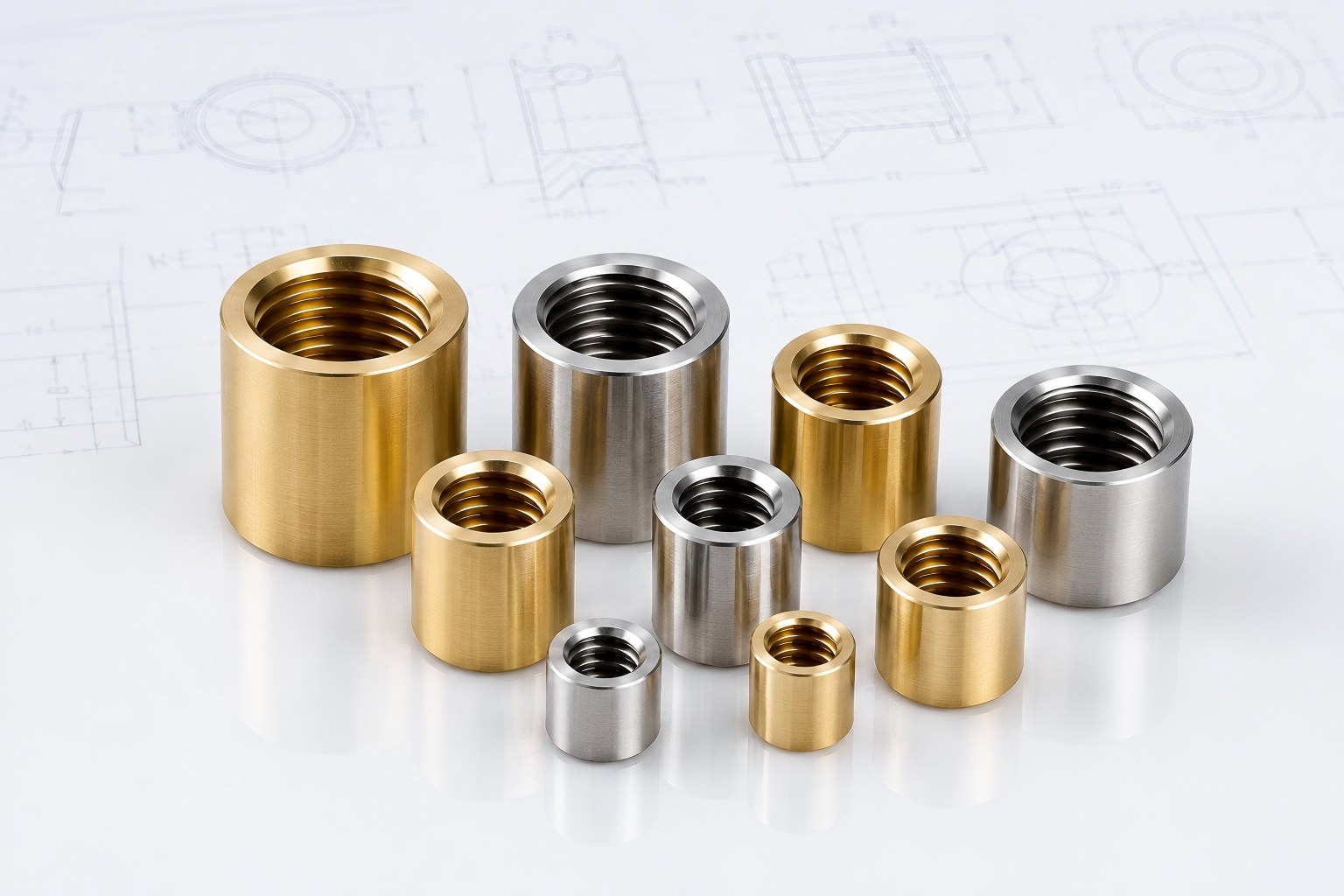

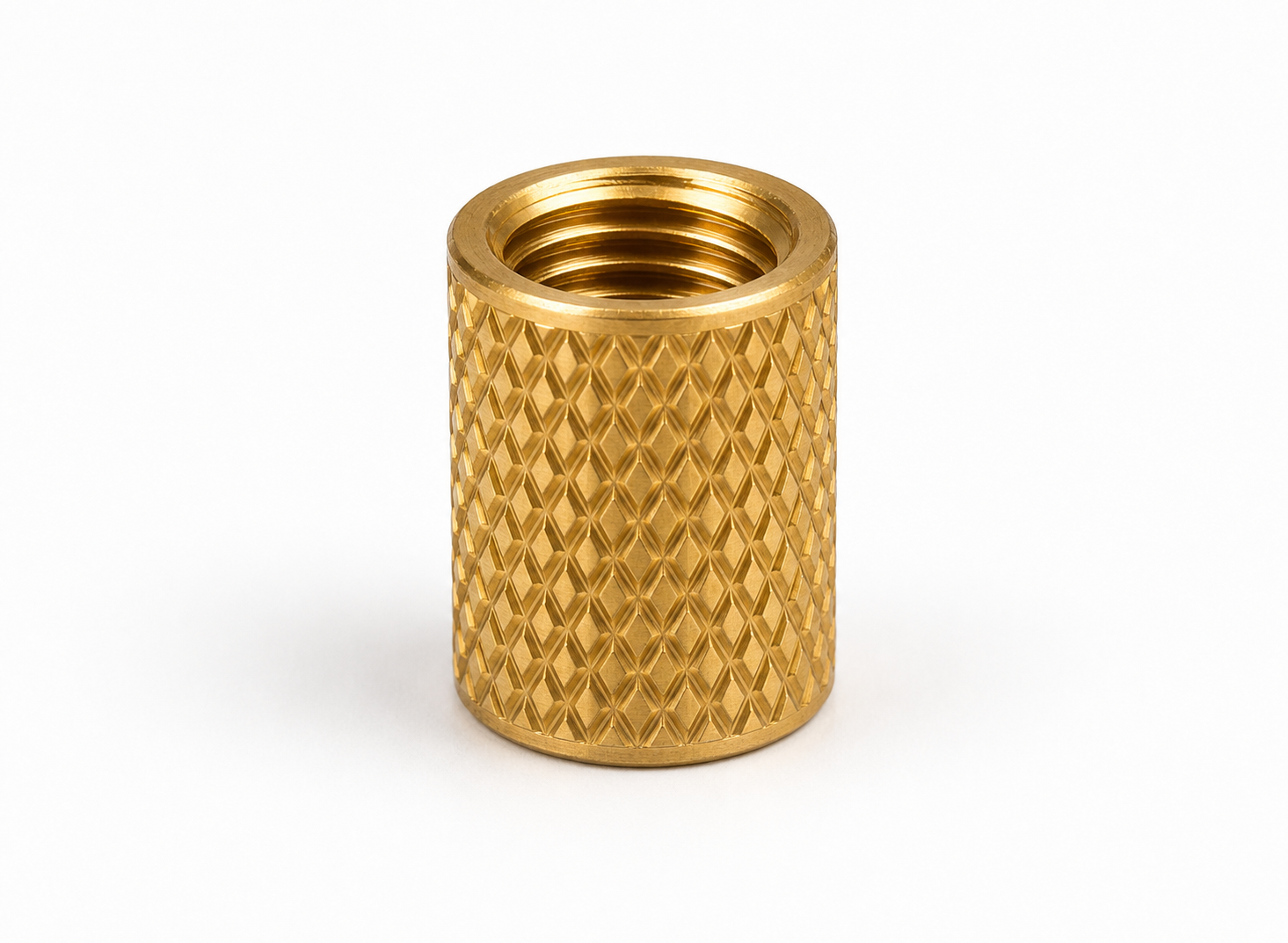

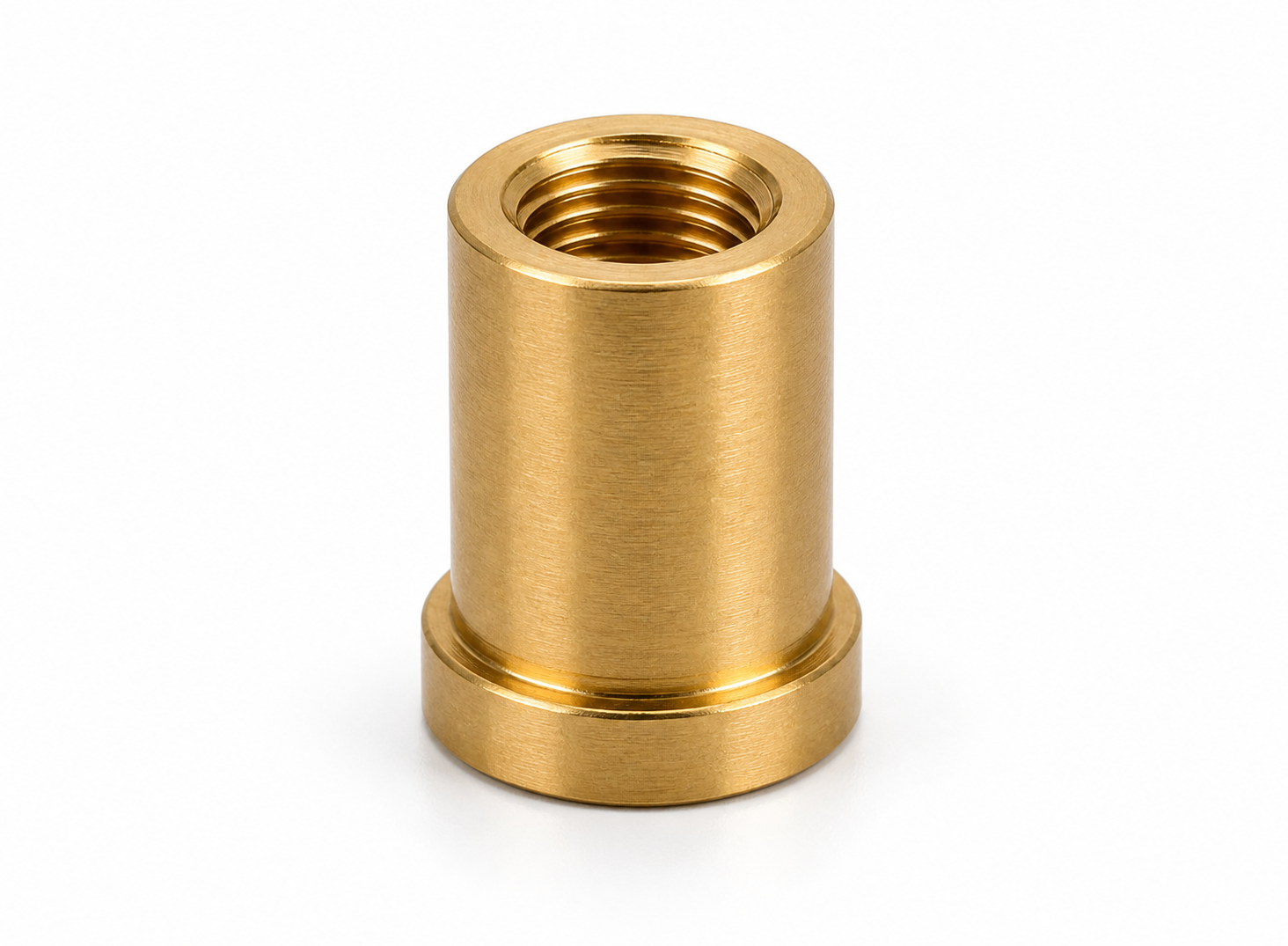

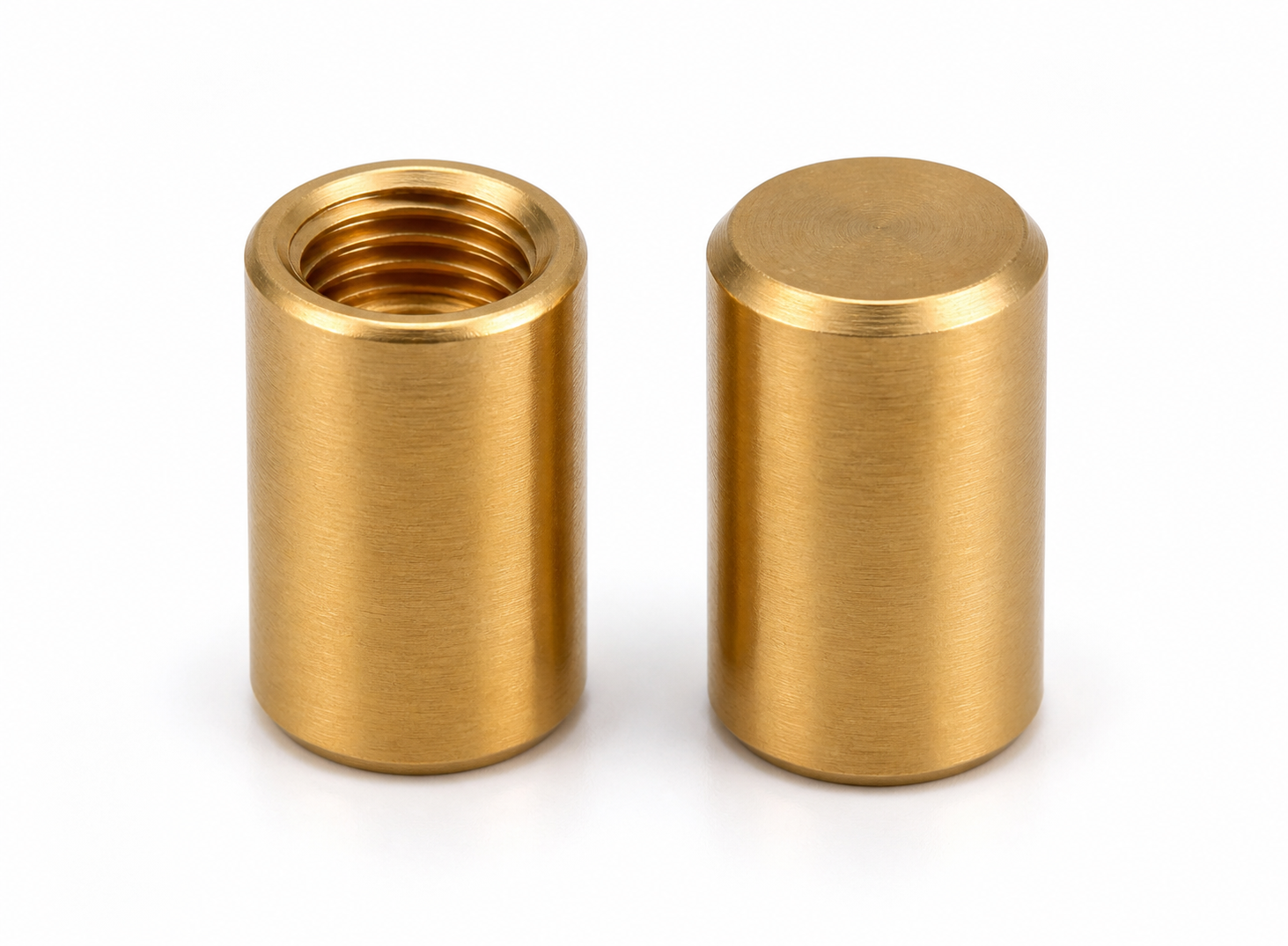

Round knurled, shoulder and blind insert styles.

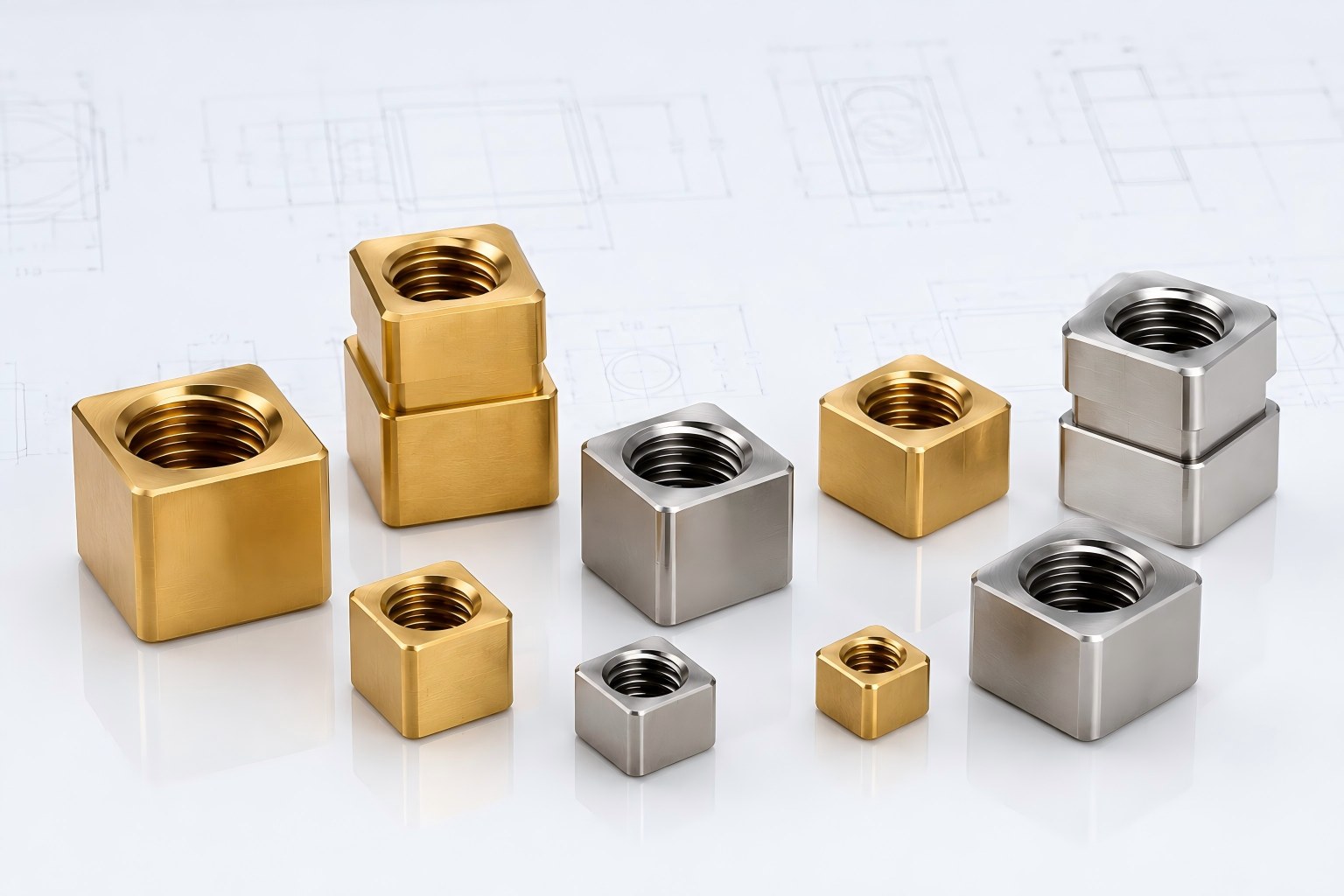

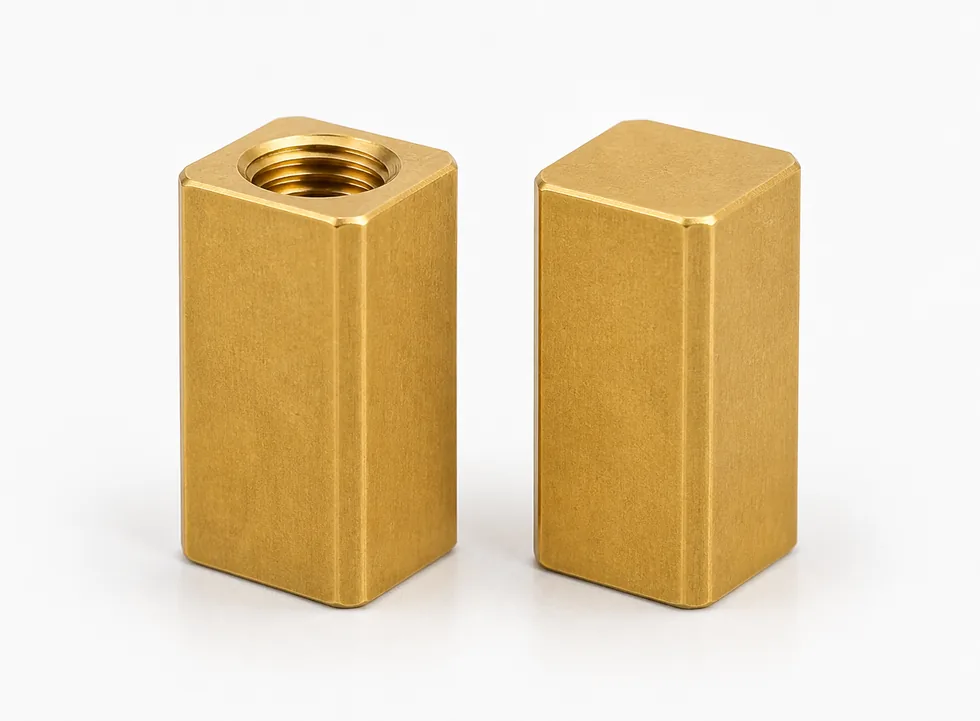

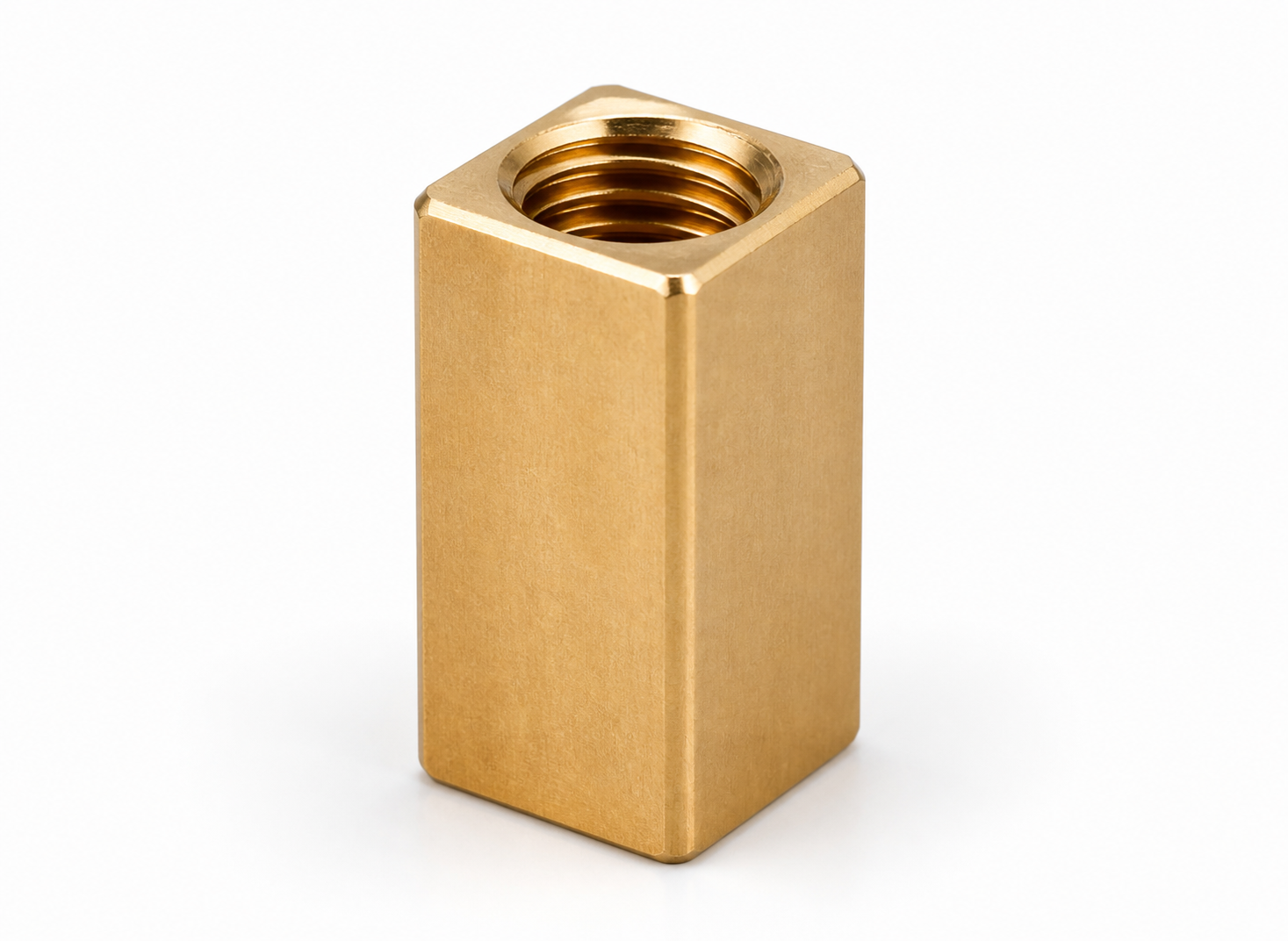

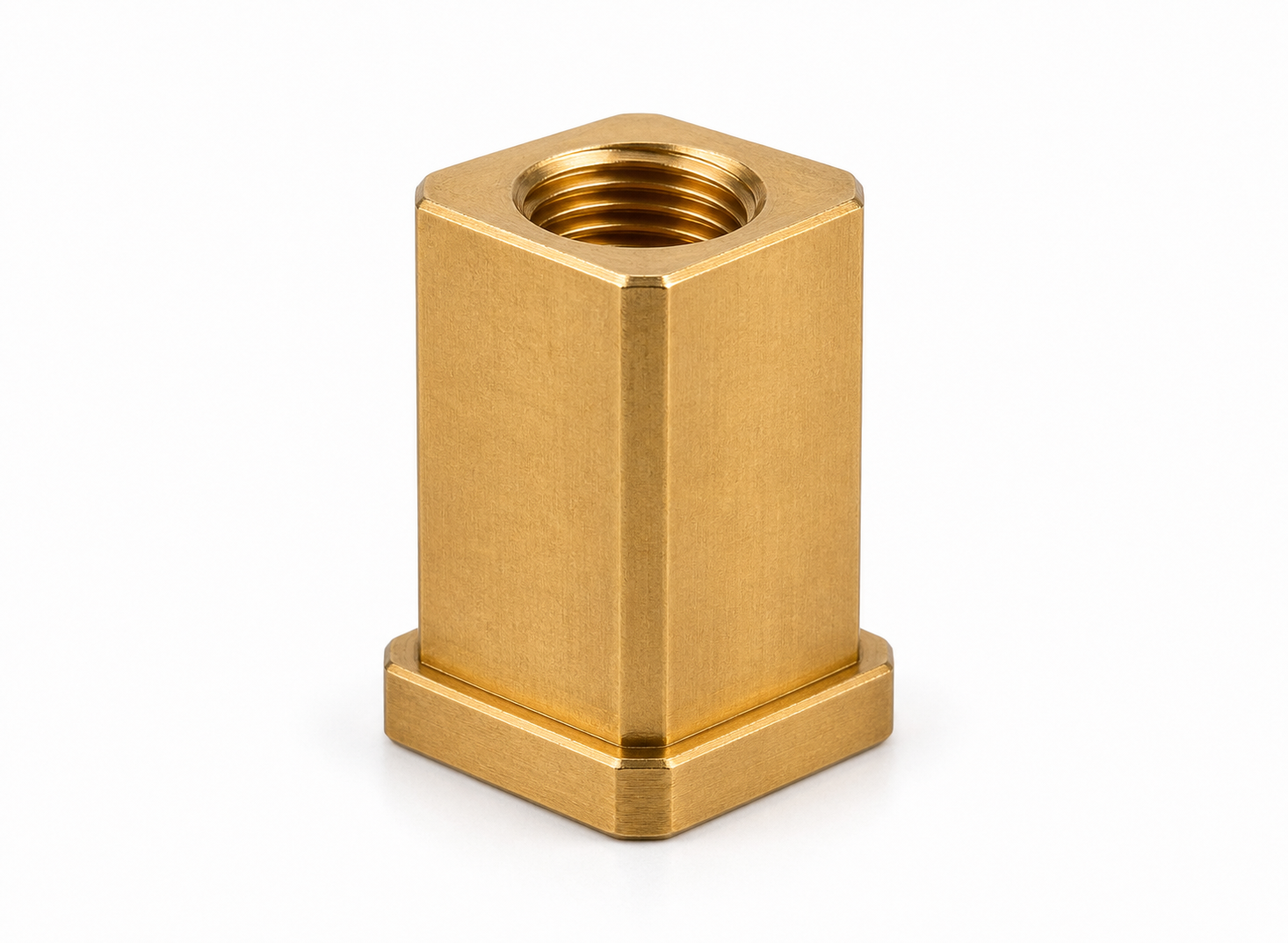

Square outside shapes for anti-rotation support.
Special shapes, samples, drawings, or marked-up requirements.
Four insert request paths are grouped as one quick visual starting point for the builder.
Build Your Insert RFQ
Choose a standard style, enter key details, and preview your RFQ instantly.
Choose Insert Style
Enter Key Details
RFQ Preview Sheet

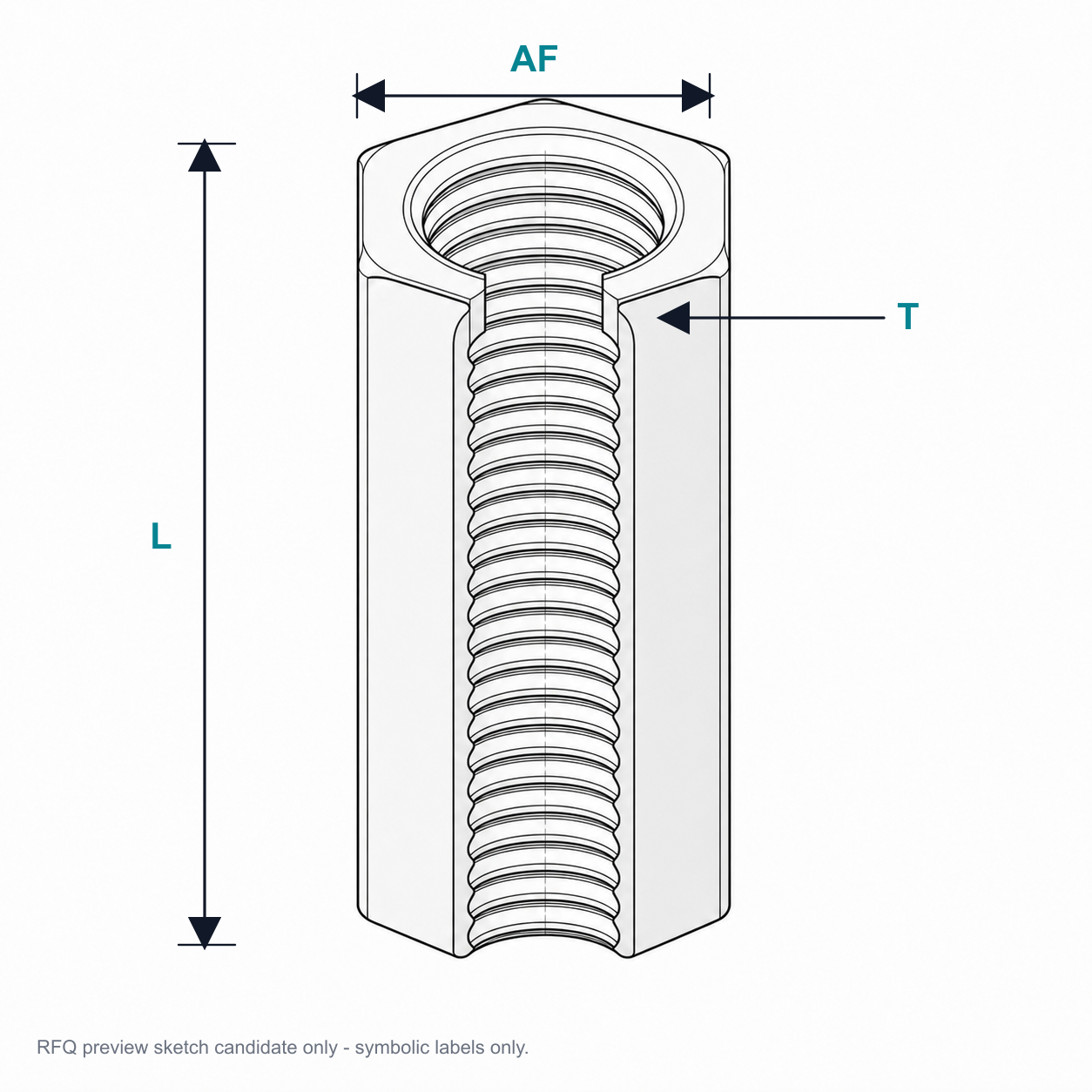

Straight hex body insert for standard threaded insert RFQs.
- Thread
- 1/4-20 UNC
- Body Length
- 12 mm
- Across Flats
- 8 mm
- Material
- Brass
- Quantity
- 500 pcs
- Finish
- Plain
- Style ID
- HEX-001-ST
- Part Type
- Hex Straight
This preview is for RFQ communication only. Final production drawings and manufacturing details will be reviewed by ATOS engineers.
